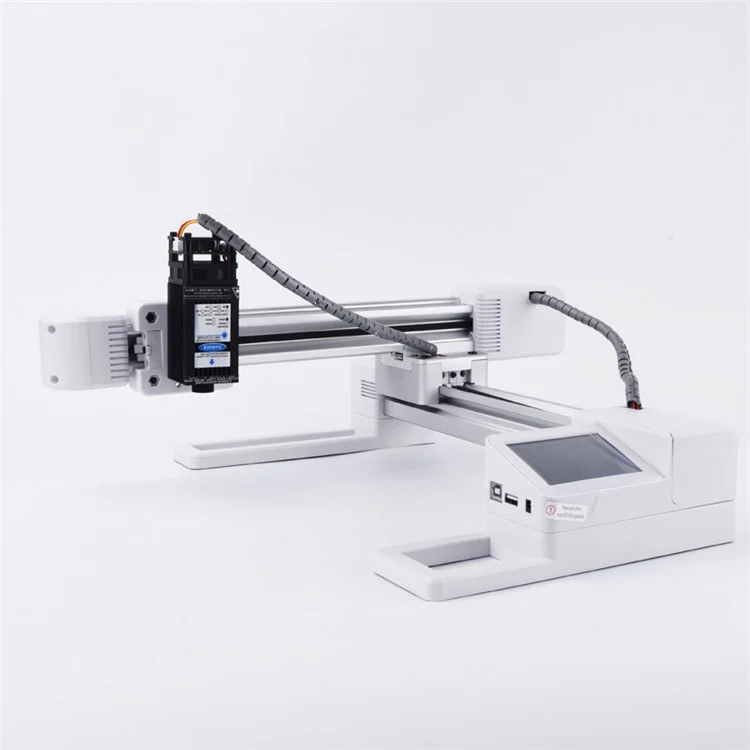

Portable Desktop Laser Engraving Machine for Metal/Non /15.5*17.5cm
$625.00
The desktop laser engraving machine print of high power and 550*550 pixel high resolution, It can be controlled by windows, PC,iPhone,iPad,iPod touch and android cellphone. and soft material can print out the 3D and the gradient effect! Unique frame, weak light automatic positioning and frame positioning make the image positioning easier! Good at Engraving depth and Image engraving.
Description

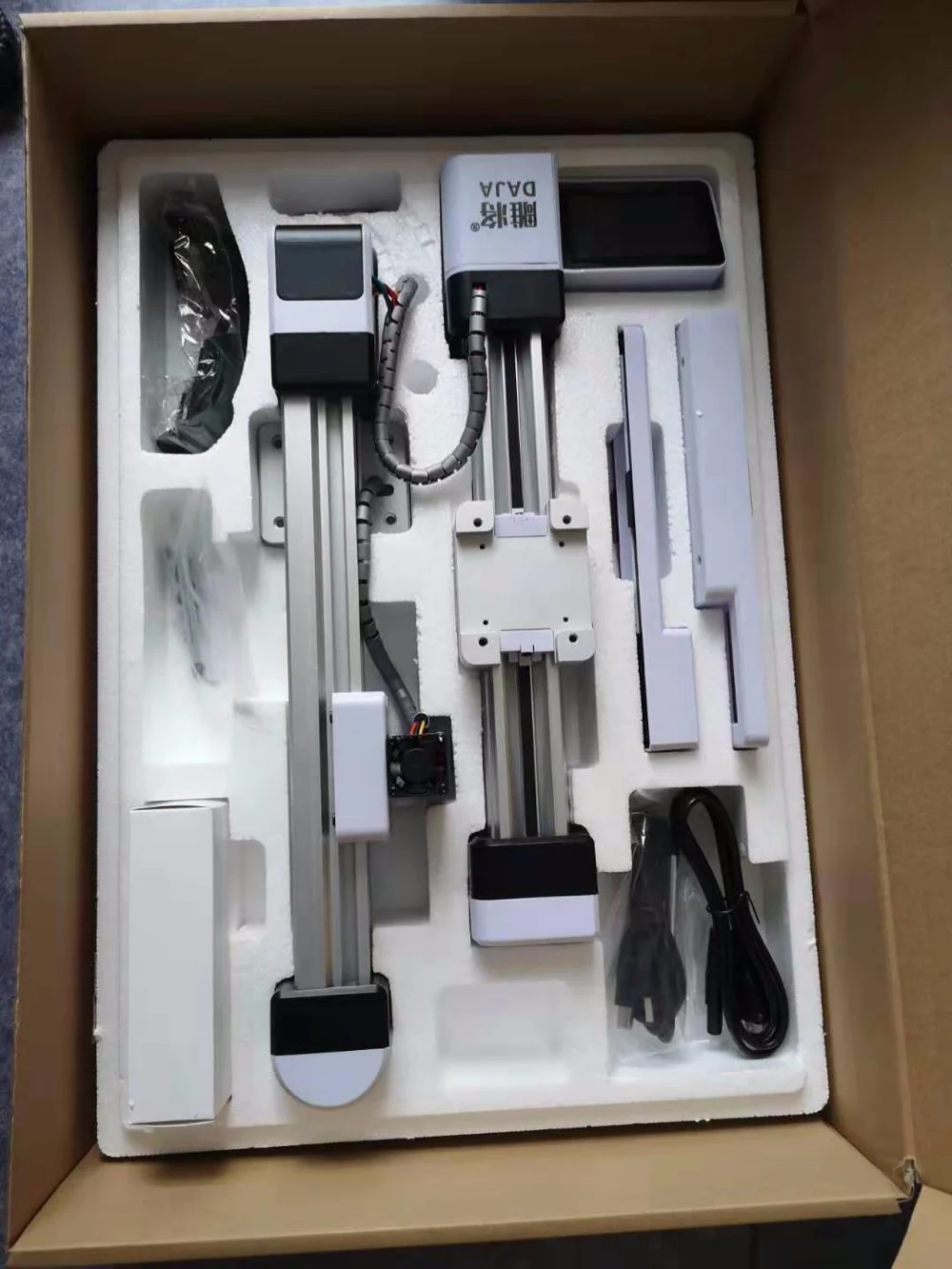

Product Description
1. User Manual: Instructions for engraving machine operation
2. Power Supply: Plug in socket to charge engraving machine

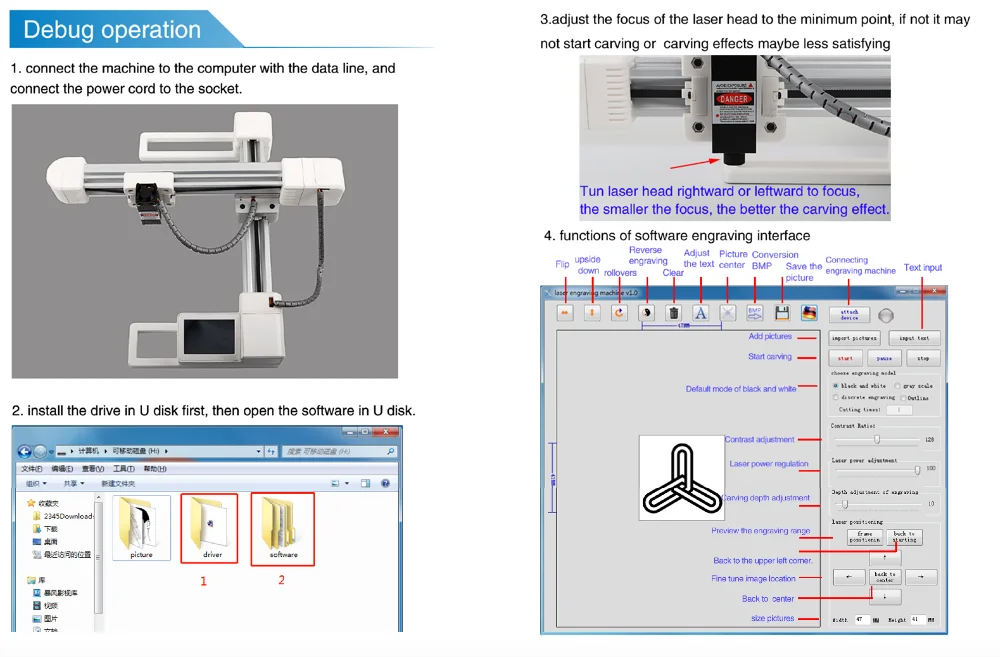

3. Data Cable: Connect machine to computer
4. U Disk: Driver software, control software and picture package
5. Screws: To mount laser shield on machine
6. Eye Protector: Reduce laser brightness to protect eyes
7. Test Board: For engraving test
8. Kraft Paper: For engraving test
|
Model
|
L3W offline Version
|
L7W offline Version
|
L10W offline Version
|
|
Host material
|

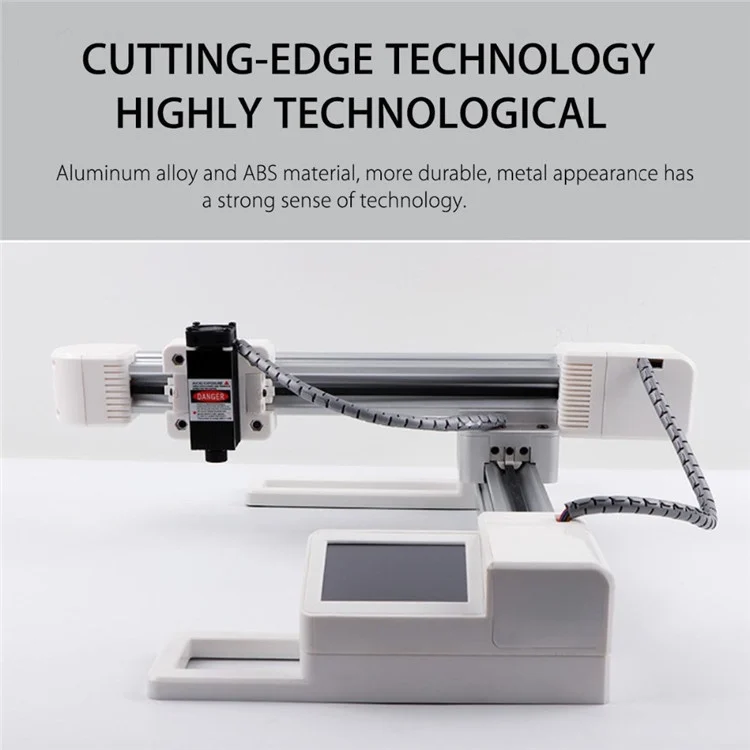

ABS+ Aluminum Alloy
|
ABS+ Aluminum Alloy
|
ABS+ Aluminum Alloy
|
|
Size
|
Machine size:42*45*16cm
Packing size:58*39*15cm |
Machine size:42*45*16cm
Packing size:58*39*15cm |
Machine size:42*45*16cm
Packing size:58*39*15cm |
|
Packing weight
|
4.2KG
|
4.5KG
|
4.5KG
|
|

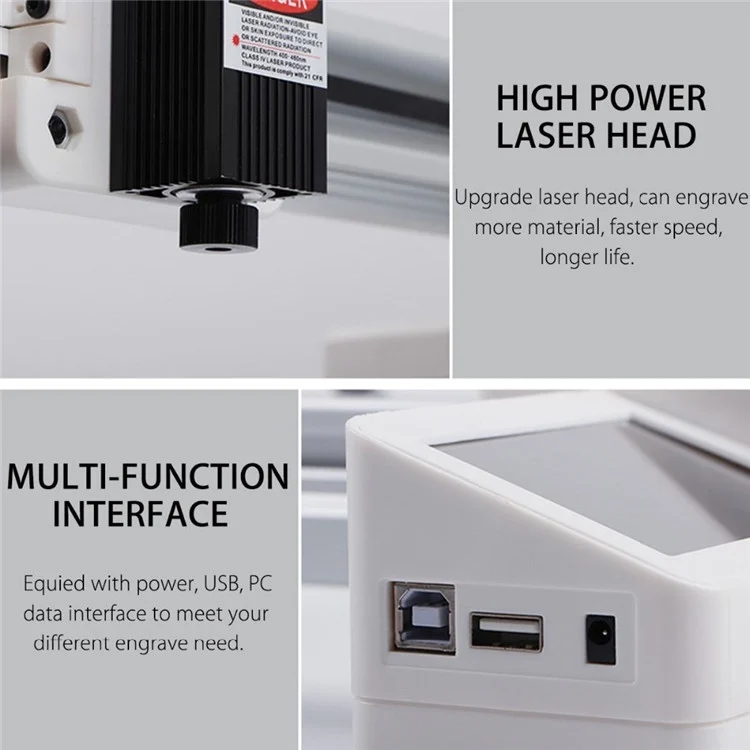

Laser head power
|
3000mw
|
7000mw
|
10000mw
|
|
Voltage / current / power
|
12V/5A/40W
|
12V/5A/50W
|
12V/5A/50W
|
|
Maximum engraving area
|
15.5*17.5cm
|
15.5*17.5cm
|
15.5*17.5cm
|
|
Engravable materials
|
1.Wood, paper, plastic, leather, bamboo, bone and teeth, acrylic, etc. 2.Can cut paper, wood, leather, non-woven fabric, non-woven fabric, etc. within 1mm |
1.Wood, paper, plastic, leather, bamboo, bone and teeth, acrylic, etc. 2.Stainless steel, anodized, dark plating, electrophoretic paint, etc.
3.It can cut paper materials within 2.5mm, wood, leather, non-woven fabric, non-woven fabric, etc., non-transparent plastic sheet within 1mm, cake card, glitter paper, etc.
|
1.Wood, paper, plastic, leather, bamboo, bone and teeth, acrylic, etc. 2..Stainless steel, anodized, dark plating, electrophoretic paint and other metal materials (faster than 7 watts, better engraving effect)
3.It can cut paper materials within 2.5mm, wood, leather, non-woven fabric, non-woven fabric, etc., non-transparent plastic sheet within 1mm, cake card, glitter paper, etc.
|
|
Software language
|
Chinese, English and Japanese
|
Chinese, English and Japanese
|
Chinese, English and Japanese
|
|
Support system
|
WIN XP/7/8/10 IOS
|
WIN XP/7/8/10 IOS
|
WIN XP/7/8/10 IOS
|
|
Support format
|
JPEG/JPG/PNG
|
JPEG/JPG/PNG
|
JPEG/JPG/PNG
|
|
Operating modes
|

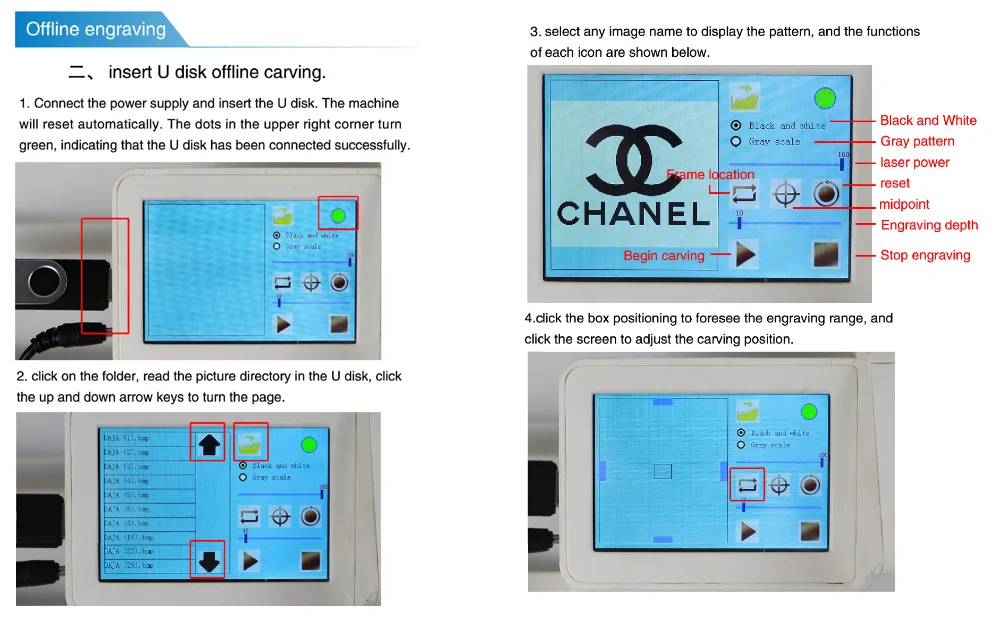

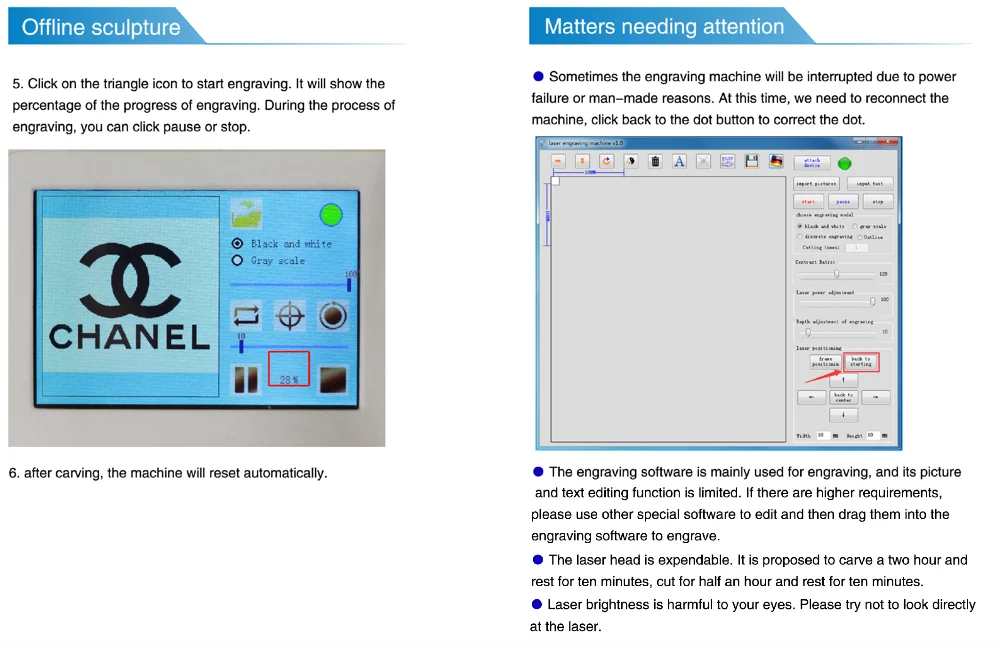

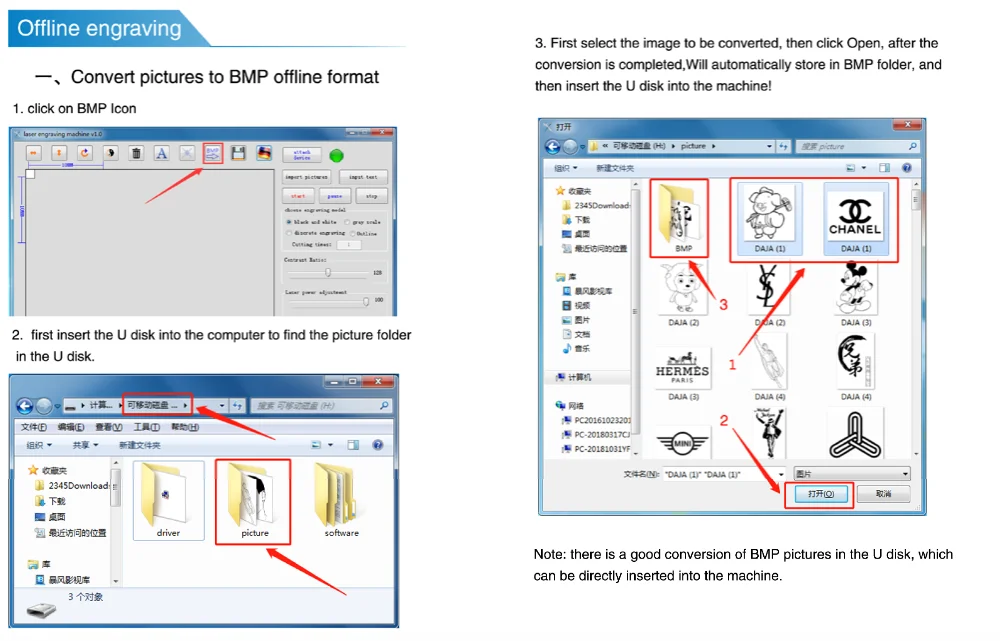

Computer software/Screen Offline engraving
|
Computer software/Screen Offline engraving
|
Computer software/Screen Offline engraving
Fixed focus laser head (send lifting table) |
|

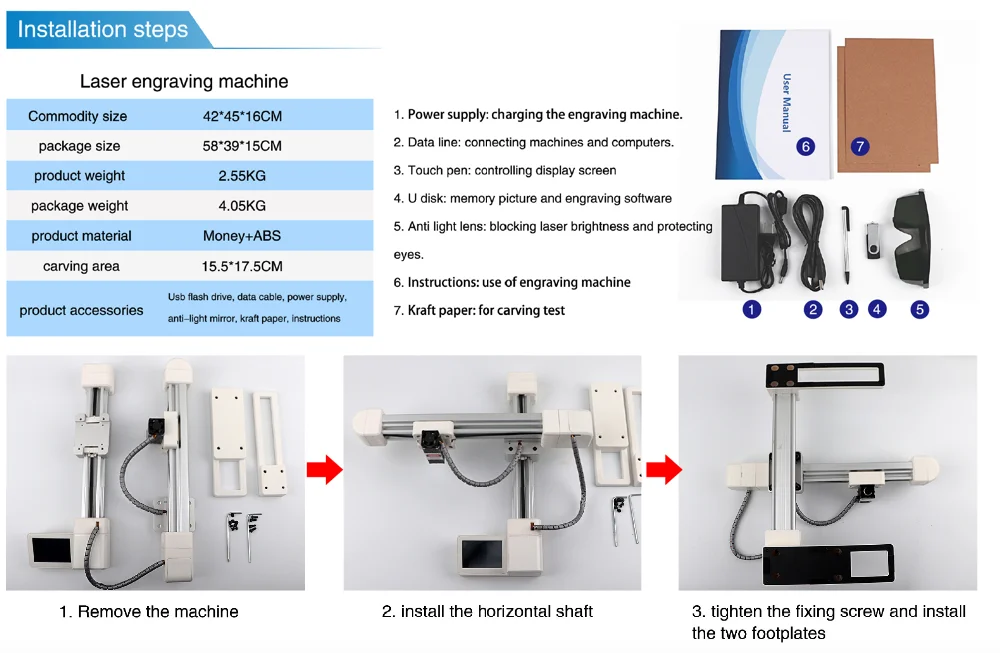

Packing include
|
User Manual Power Supply
Data Cable
U disk
Screws
Eye Protector
Test Board
Kraft Paper
|
User Manual
Power Supply Data Cable U disk Screws Eye Protector Test Board Kraft Paper |
User Manual
Power Supply Data Cable U disk Screws Eye Protector Test Board Kraft Paper |
|
Warranty
|
one year
|
one year
|
one year
|
Detailed Images
